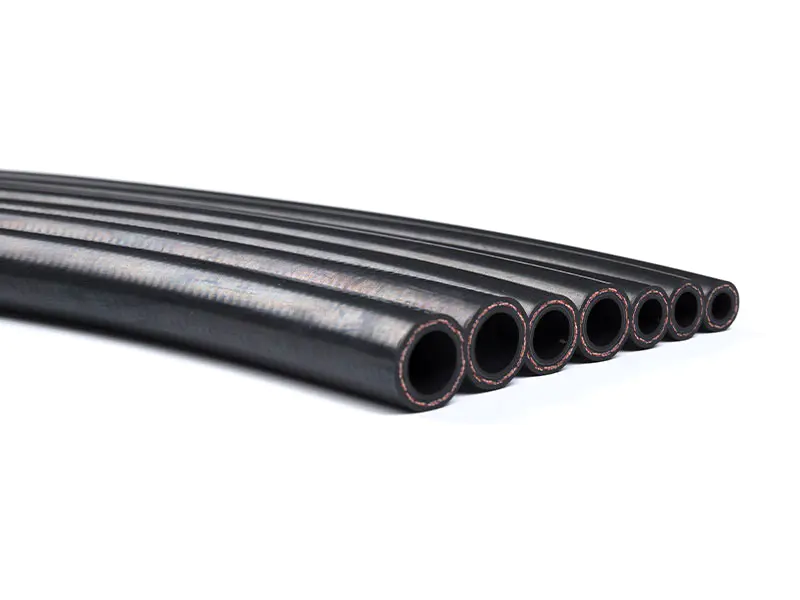

ADVANTAGE:
Light weight and flexible
Temperature range of -40 °C to +135 °C
Meets SAE J2064/SAE J3062/QC/T664-2019
Compatible with R32/R 410a/R 1234yf/ R134a/ R 410a/R404a refrigerants and mineral oils / PAGs
DATASHEET:
Dimension. | Inch | I.D. | 0.D. | Wall Thickness. mm | Wall Diff Max.mm | Work Pressure Max.MPa | Burst Pressure Min.MPa | Bend Rad | Weight |
8 | 5/16" | 8.2±0.4 | 19.0±0.5 | 5.4 | 0.4 | 3.5 | 15 | 70 | 285 |
10 | 13/32" | 10.2±0.4 | 23.0±0.5 | 6.2 | 0.4 | 3.5 | 15 | 85 | 393 |
13 | 1/2" | 13.0±0.4 | 25.4±0.5 | 6.2 | 0.4 | 3.5 | 15 | 85 | 332 |
13 | 1/2" | 13.0±0.4 | 23.0±0.5 | 5 | 0.4 | 3.5 | 15 | 95 | 441 |
16 | 5/8" | 16.1±0.4 | 28.6±0.5 | 6.3 | 0.4 | 3.5 | 15 | 105 | 470 |
8 | 5/16" | 8.2±0.3 | 15.2±0.4 | 3.5 | 0.4 | 3.5 | 18 | 55 | 146 |
8 | 5/16" | 8.2±0.3 | 14.8±0.4 | 3.3 | 0.4 | 3.5 | 18 | 55 | 132 |
10 | 13/32" | 10.2±0.3 | 17.2±0.4 | 3.5 | 0.4 | 3.5 | 18 | 65 | 178 |
11.5 | 13/32" | 11.2±0.3 | 18.4±0.4 | 3.6 | 0.4 | 3.5 | 18 | 70 | 196 |
13 | 1/2" | 13±0.3 | 19.4±0.4 | 3.2 | 0.4 | 3.5 | 18 | 75 | 202 |
13 | 1/2" | 13.2±0.4 | 20.8±0.5 | 3.8 | 0.4 | 3.5 | 18 | 75 | 231 |
15.5 | 5/8" | 15.2±0.4 | 22.8±0.5 | 3.8 | 0.4 | 3.5 | 16 | 85 | 257 |
16 | 5/8" | 16.1±0.4 | 23.6±0.5 | 3.75 | 0.5 | 3.5 | 15 | 90 | 280 |
