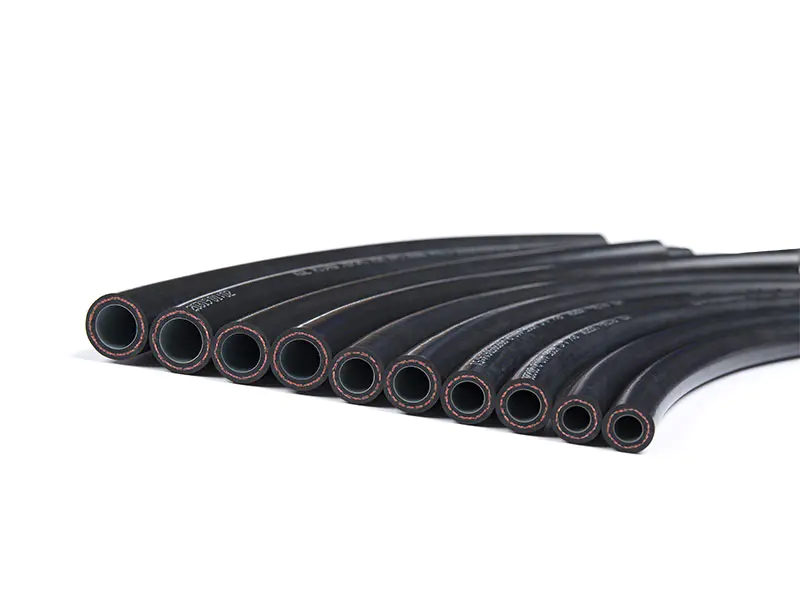

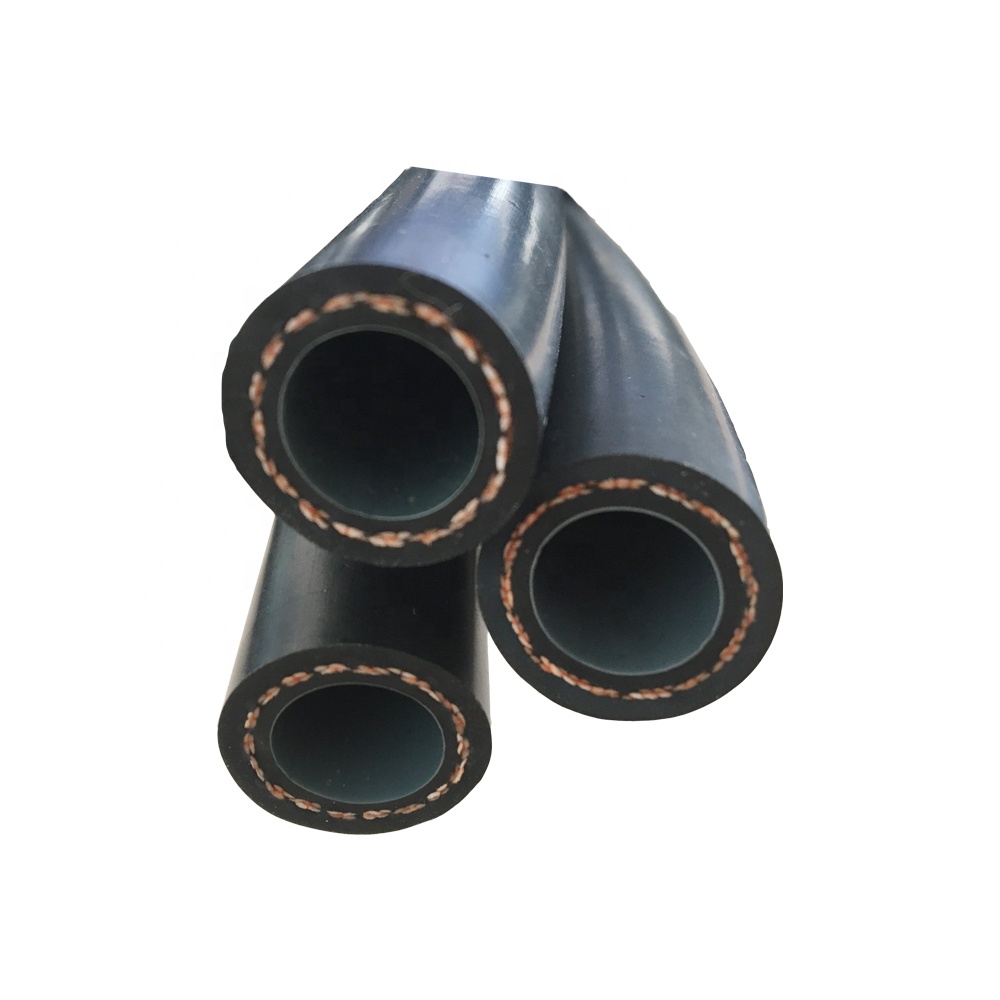

AC HOSE-TYPE E

二维码
分享
微信
脸书
X
领英
Pinterest
Whatsapp
Line
Tumblr
+86-138-5757-1381
Details

ADVANTAGE:

Light weight and flexible

Temperature range of -40 °C to +135 °C

Meets SAE J2064/SAE J3062/QC/T664-2019

Compatible with R32/R 410a/R 1234yf/ R134a/ R 410a/R404a refrigerants and mineral oils / PAGs

DATASHEET:

Dimension.
mm

Inch

I.D.
mm

0.D.
mm

Wall Thickness. mm

Wall Diff Max.mm

Work Pressure Max.MPa

Burst Pressure Min.MPa

Bend Rad
Min.mm

Weight
g/m

8

5/16"

8.2 ±0.4

18.9±0.5

5. 25

0.6

3.5

15

55

261

10

13/32"

10.0 U

22.5±0.5

6

0.6

3.5

15

85

411

13

1/2"

13.0±0.4

23.0±0. 5

5

0.6

3.5

15

90

485

16

5/8"

16.0±0.5

28.0±0. 6

6

0.6

3.5

15

105

558

8

5/16"

8.2 ±0.3

15.2 ±0.4

3.5

0.4

3.5

18

55

155

10

13/32"

10.2 ±0. 3

17.2 ±0.4

3.5

0.4

3.5

18

65

178

11.5

13/32"

11.2±0.3

18.4±0.4

3.6

0.4

3.5

18

75

201

13

1/2"

13.2 ±0.3

20.8±0. 4

3.8

0.4

3.5

18

75

241

15.5

5/8"

15.2 ±0.4

22.8±0. 5

3.8

0.4

3.5

16

85

271
